Joint Wrap LED Light Therapy, Pain Relief by dpl Light Therapy

The dpl® Joint Wrap is an FDA-cleared device for pain relief designed for use on the shoulder, elbow, knee, and ankle joints. Unlike a heating pad, infrared light therapy works below the skin’s surface, reaching deep into tissues, stimulating cells, and increasing circulation to target pain at the source. Safely stimulate blood circulation, relax muscles, accelerate healing, and relieve pain. Feel better in just 20 minutes in the comfort of your own home!

eatures & Benefits

- FDA-cleared OTC Class II medical device
- FSA/HSA approved
- Medically proven, clinically tested
- Accelerates healing, reduces inflammation, and promotes circulation
- Beneficial for pain resulting from arthritis, joint injury, tendinitis, muscle pain, bursitis, aches and strains, sprains, and more
- Safe, natural solution with no side effects
- Professional-grade LEDs (880nm Infrared, 660nm Red)

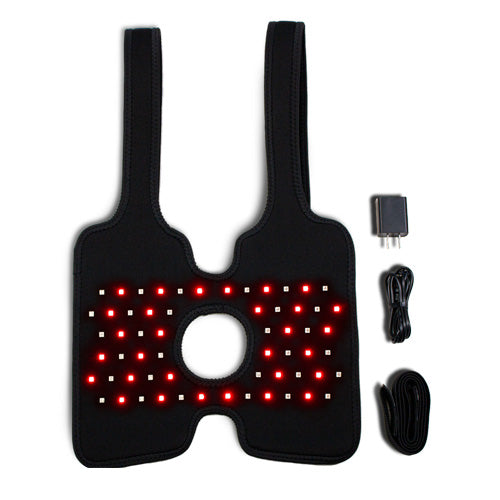

Note: You will only see the red LEDs light up when the device is turned on. The other LEDs are in the infrared light spectrum and cannot be seen with the human eye. Please know that if you see red lights while the device is turned on, the device is working (pattern of lights may vary).


1. Fully charge device (2-4 hours).

  • Your device may have a residual charge from the factory out of the box, indicated by a solid blue charging light when you turn it on. For best results, fully deplete this charge before plugging your device in. Your device will require 2-4 hours to fully charge each time. The red indicator light will turn solid (no longer blinking) when charging is complete. A full charge will provide 2 to 3 full 20-minute treatments.
  • DO NOT recharge the battery after each 20-minute treatment. For best results, you should fully deplete the battery before recharging. Failure to do so will progressively shorten battery life.
  • Battery charge will diminish over time. For best results, conduct treatments within 48 hours of charging.

2. Wash and dry the area prior to use.
3. Place the device directly on the skin over the desired treatment area.
4. Pull straps through the loop.
5. Fasten straps and adjust to a comfortable fit.
6. For treatment areas such as the elbow or shoulder, it may be easier to first pull the straps through the loop, then put the arm through and fasten the straps.
7. Press the Power Button to start the device (may require double press). Device must be unplugged to turn on, it will not turn on while plugged in. A blue light on the battery pack will show when the device is turned on.
8. Leave the device over the treatment area for 15-20 minutes.
9. Press & hold the power button at any time prior to auto shut off to stop the device.
10. Device may be used multiple times per day. Do not exceed 3 treatments per day per treatment area.


Device not turning on:
Is the device fully charged?
Is the power button turned on? A blue light on the battery pack will show when the device is turned on.
Is the device plugged in? The device will not turn on while plugged in, the device must be unplugged to turn on.

Device is not charging:
Is the USB charging cord firmly inserted into the device? (Does the power indicator light turn on?)
Try different wall outlets to confirm power is available.

Device shuts off abruptly prior to completion of 20-minute treatment:
Device is designed to shut off automatically after 20 minutes.
Device may shut off automatically after multiple repeated uses if the device exceeds the desired temperature. Allow the device to cool for several minutes and try again.

Some lights appear not to be on:
The Infrared (IR) light spectrum is not visible to the human eye. These lights will look as if they are not on but are operating properly. If red lights are on, the device is operating as designed.
